GOGGA™ FlexPull — pull the belt the way it wants to run.
A patent-pending multi-point conveyor belt-pulling system, designed by our own mechanical and electrical engineer for controlled installation, replacement, maintenance and splicing in mining, quarrying and bulk materials handling.
Designed by Kia-Kaha Mining’s own mechanical and electrical engineer — the same engineer behind our engineering support, and the inventor named on the patent application.
How it works
A different way to pull conveyor belt

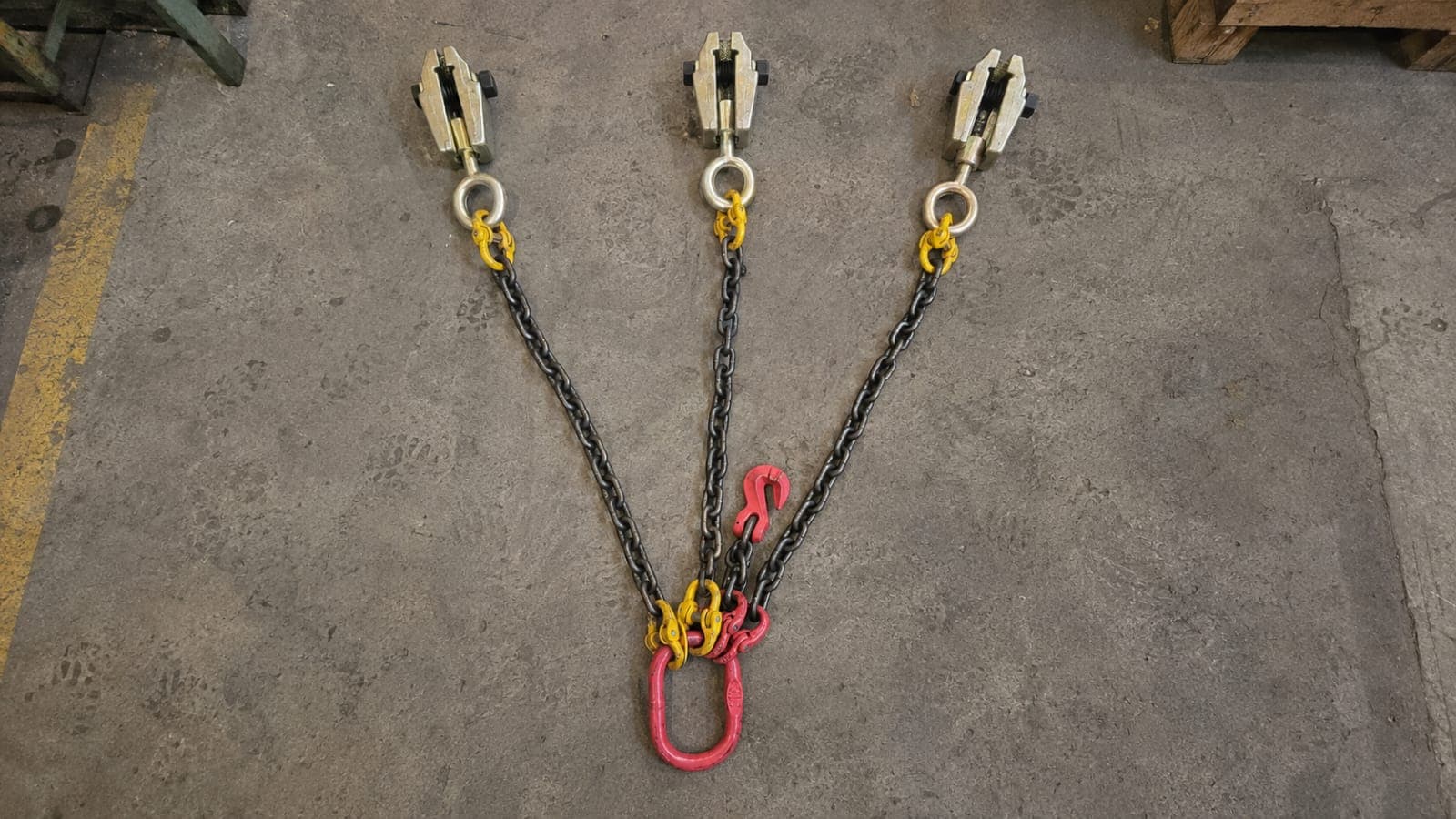

Instead of relying on one single rigid pulling point, FlexPull uses multiple independently positioned belt clamps connected to a common pulling point — so the pull is controlled, the force is distributed, and the belt is allowed to follow its natural profile.
Multi-point gripping
Multiple clamps engage the belt across its width rather than one rigid point — more grip, less concentrated stress.
Adjustable load distribution
The centre connection can be set as the primary load point while side clamps guide and stabilise the belt.
Modular construction
Configurable for maintenance pulls, belt positioning, splicing support and engineered heavy-duty applications.
- Field-focused
- Portable, built for real conveyor conditions.
- Modular
- Interchangeable components for different tasks.
- Belt control
- Stability and controlled movement during the pull.
The current development geometry uses a 105 mm × 50 mm toothed gripping jaw on a compact 45 mm clamp body — multiple smaller gripping points rather than aggressive projections, to grip securely while controlling localised belt-cover loading. Final clamp geometry, materials and fasteners remain subject to engineering verification.
New GOGGA™ clamp under development
A new enlarged-grip steel clamp is currently progressing to prototype casting and physical testing. Production geometry and load ratings will be finalised following prototype evaluation and proof-load testing. The production clamp will carry permanent cast-in GOGGA™ branding; a load rating is added to the pattern only once testing establishes the production figure.
The range
GOGGA™ FlexPull Development Range

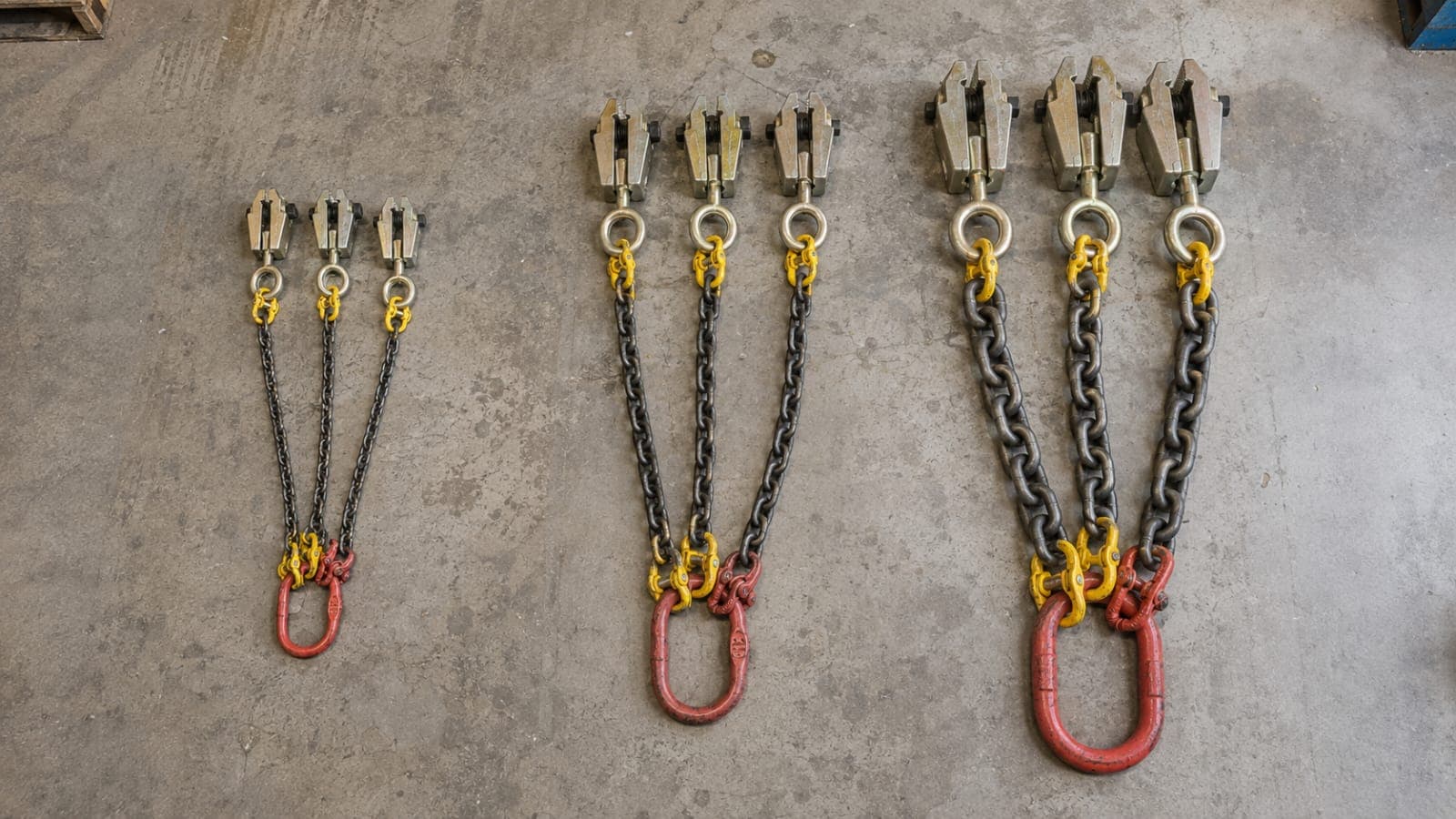

FlexPull is being developed in three physical sizes. These are development configurations, not final tested models — there are no load numbers or model designations until prototype evaluation and proof-load testing are complete.
Lighter maintenance
Compact development configuration
For lighter maintenance work, belt-end positioning and short controlled pulls.
Heavier maintenance
Medium development configuration
A higher-capacity portable configuration for more demanding short-distance belt pulling.
Larger belts
Heavy-duty development configuration
Application-engineered for larger belts, higher pulling forces and specialised installation.
Splicing support · in development
GOGGA™ SplicePull
A compact belt-end positioning configuration to bring belt ends together accurately during mechanical or vulcanised splicing.
Method
The pull, step by step
- 01
Position
Position the belt clamps across the conveyor belt at suitable pulling locations.
- 02
Clamp
Mechanically secure each clamp to the belt.
- 03
Connect
Connect the individual pulling legs to the common master pulling point.
- 04
Adjust
Set the centre connection as the primary load point and adjust it relative to the side clamps.
- 05
Pull
Connect to suitable rated pulling equipment and move the belt under controlled conditions.
- 06
Inspect
Inspect clamps, connectors and belt engagement throughout the operation per the approved procedure.
Where it applies
Applications
- Conveyor belt installation and replacement
- Belt positioning and belt-end positioning
- Maintenance shutdowns and short controlled pulls
- Mechanical splice preparation
- Vulcanised splice preparation
- Above-ground and underground conveyors
Conveyor belt installation, replacement, maintenance and splicing — in mining, quarrying and bulk materials handling.
Engineering, ratings & IP
Verified before operational use
- Production ratings are established through engineering review, testing and proof-load verification.
- No final Working Load Limit is published for a model until the complete system has undergone engineering verification and proof-load testing. Where a WLL is not verified yet, it is shown as “confirmed on verification / on quotation” — never an estimated number.
- Production specifications may change as development and certification progress.
- The FlexPull system, its multi-point configuration and its operating methods are the subject of intellectual-property protection. A patent application is on file — the product is patent pending, not patented.
Designed by our engineer
A proprietary system from the same engineer who shows up on your site
GOGGA™ FlexPull was developed by Kia-Kaha Mining’s mechanical and electrical engineer — the inventor named on the patent application. The same engineer runs our on-site conveyor and plant assessments, failure investigations and component selection.
Engineering support →Questions
Common questions
Related
Request a quote
Send your belt details
Tell us the belt width, construction and thickness, and the pulling, positioning or splicing application. Add the site and any anchoring context, and photographs of the pulling area.
