Hydraulics
Cylinders, pumps, valves, hoses and seal kits matched to the machine and the circuit
A hydraulic enquiry is solved from the machine, the circuit and the measurements. The machine make, model and serial place the component; the operating pressure and flow size it; and where a part number is gone, the measured dimensions — bore, rod, stroke, displacement, port and thread — identify it. We supply cylinders, pumps, motors, valves, hose and seal kits, and reseal or rebuild what is worth saving.
Overview
What hydraulics covers
A hydraulic enquiry is solved from the machine, the circuit and the measurements. The machine make, model and serial place the component; the operating pressure and flow size it; and where a part number is gone, the measured dimensions — bore, rod, stroke, displacement, port and thread — identify it. We supply cylinders, pumps, motors, valves, hose and seal kits, and reseal or rebuild what is worth saving.
Construction
How it is built
What to measure or read off for each type of hydraulic component:
Identifying a hydraulic component
| Component | Key details to send |
|---|---|
| Cylinder | Bore, rod diameter, stroke, closed (pin-to-pin) length, port type and size, mounting (clevis, trunnion, flange), cushioning |
| Pump / motor | Nameplate or casting number, displacement (cc/rev), max pressure, shaft (keyed, splined, tapered), port and mounting flange (SAE A/B/C) |
| Directional / control valve | Number of ports and positions, spool type, actuation (lever, solenoid — voltage), mounting (NG6/CETOP 3, NG10), pressure and flow |
| Hose assembly | End fittings (or the old hose), overall length, bend/routing, hose ID, and the working pressure |
| Seal kit | Cylinder make and model, or the individual seal profiles and sizes, and the fluid type |
| Power pack / HPU | Motor kW and supply, pump flow and pressure, reservoir size, and the valve functions required |
Options
Hydraulic ranges we supply
Selection notes for the parts of the circuit asked for most often.
Hydraulic component families
| Family | Specify by |
|---|---|
| Cylinders — supply, reseal, repair, manufacture to sample | Bore, rod, stroke, closed length, port, mounting, working pressure |
| Gear / vane / piston pumps & motors | Displacement, pressure, shaft and port arrangement, drive speed, direction of rotation |
| Valves & manifolds | Function, flow, pressure, mounting pattern, actuation and control voltage |
| Hose, fittings & adapters | Hose type and ID, pressure rating, end fittings and thread standard (BSP, JIC, ORFS, metric) |
| Seal kits & cylinder hardware | Cylinder make/model or seal profiles and sizes; wear rings, glands, pins and bushes |
| Accumulators, filters, gauges & reservoir fittings | Pre-charge, capacity, port, and the mounting |
Pressure ratings, displacements and seal specifications for the item supplied are confirmed on quotation against the manufacturer data sheet.
Machine & component brands
Hydraulic brands we supply and cross-reference
Send the nameplate or casting number and we quote the genuine unit where it is available, or a quality equivalent from another of these ranges with the displacement, pressure and mounting confirmed to match.
Hydraulic component brands
| Area | Brands we work with |
|---|---|
| Pumps, motors & valves | Parker, Bosch Rexroth, Eaton / Vickers, Danfoss (Sauer-Danfoss), Kawasaki, Casappa, Bondioli & Pavesi |
| Mobile & OEM hydraulics | Caterpillar, Komatsu, Bell, Volvo, Sandvik, Metso, Hitachi, Doosan |
| Hose, fittings & couplings | Parker, Gates, Alfagomma, Manuli, Stucchi, Faster |
| Seals & sealing | SKF, Trelleborg, Hallite, Merkel (Freudenberg), NOK |
Brand names identify compatibility and the item being quoted. Kia-Kaha Mining is not an authorised distributor for these manufacturers unless stated in writing; genuine components are supplied where available, otherwise a quality equivalent confirmed to fit.
Selection
How we select it with you
Send us as much of the following as you have. Partial information is fine — our engineer will come back with the questions needed to finalise the spec, or attend site for an engineering assessment where the problem needs diagnosing first.
- 01The machine make, model and serial, and where the component sits on the machine
- 02For a cylinder: bore, rod diameter, stroke, closed length, port type and mounting — a photo with a tape in frame helps
- 03For a pump, motor or valve: the nameplate or casting number, displacement, pressure and drive / port arrangement
- 04For hose: the end fittings or the old hose, the length, bend requirement and working pressure
- 05The system operating pressure and flow, and the fluid type
- 06Whether it is a breakdown or a planned rebuild, plus quantity and delivery destination
Applications
Where we supply
- Mobile equipment — excavators, loaders, dozers, dump trucks, drill rigs, TLBs

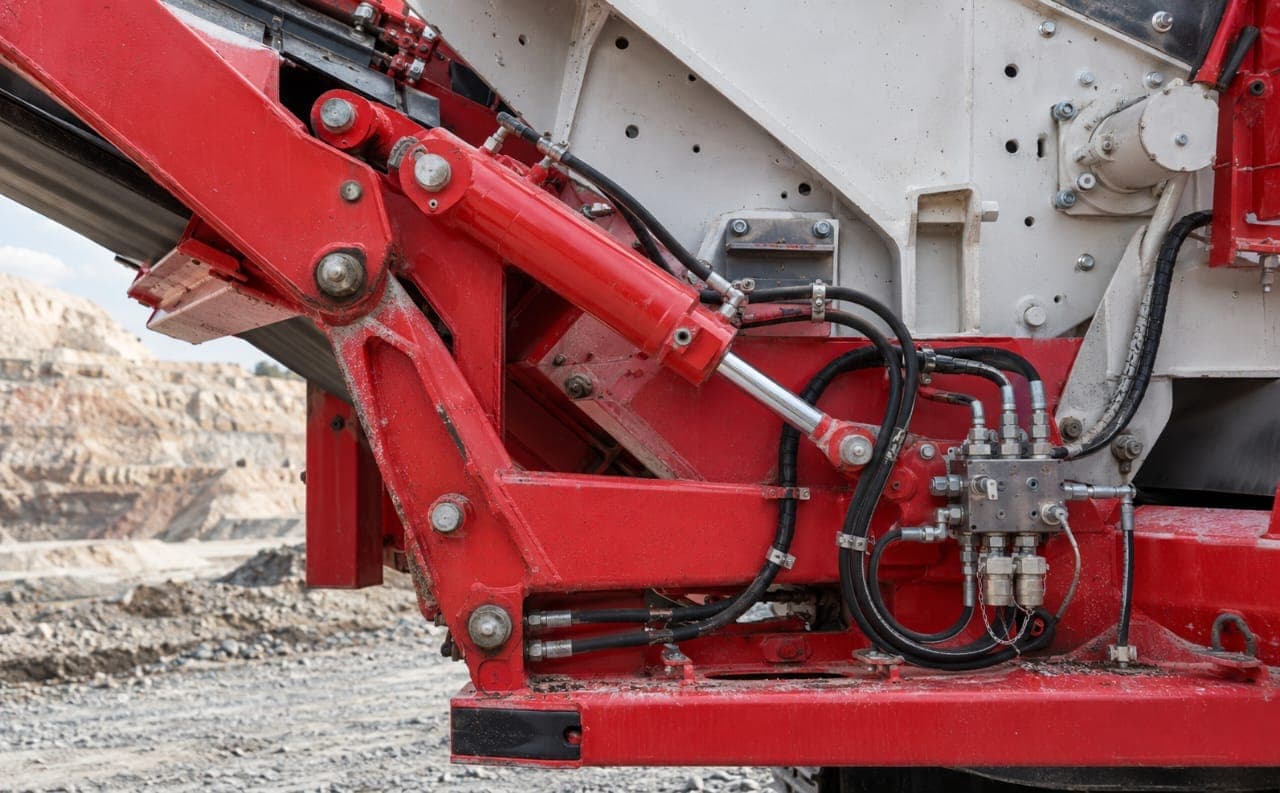

- Crushing & screening — track drives, adjustment and tensioning rams, feeder and conveyor drives
- Fixed plant — presses, clamps, gates, penstocks, hydraulic power units
- Workshop — cylinder reseal and rebuild, hose replacement, power-pack repair
What we supply
Range at a glance
- 01Hydraulic cylinders — supply, reseal and repair, and manufacture to sample or drawing
- 02Gear, vane and piston pumps and motors
- 03Directional, pressure, flow and proportional control valves and manifolds

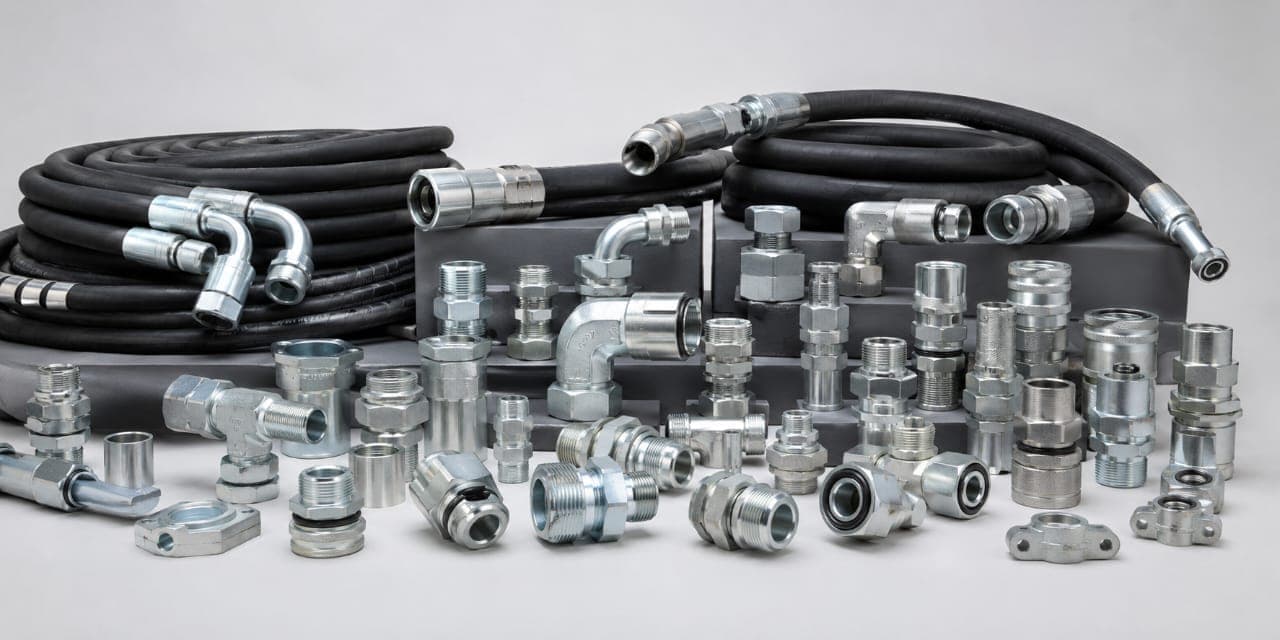

- 04Hydraulic hose, fittings and adapters — assembled to length and pressure rating
- 05Seal kits, gland packs, wear rings and cylinder hardware
- 06Filters, breathers, gauges, accumulators and reservoir fittings
- 07Power packs and HPUs, specified or repaired to the duty
- 08Quick-release couplings and hydraulic tool connections
Buyer questions
Common questions
Related
Request a quote
Send your hydraulics requirement
Not sure which spec you need? Send the machine, material and duty details — our engineer will specify the correct product and quote it.
