Flexable Resin Cable Joint

Two-part polyurethane cable-jointing resin, with the mould selected to the cable

The Flexable Resin Cable Joint is Kia-Kaha Mining's own two-part polyurethane casting resin for electrical cable jointing and repair in mining and industrial applications, with cable-specific moulds and application consumables. The resin is supplied in a sealed foil pack for easy mixing and a fast cure; the mould and pack are selected to the cable construction, outside diameter, conductor size and joint configuration.

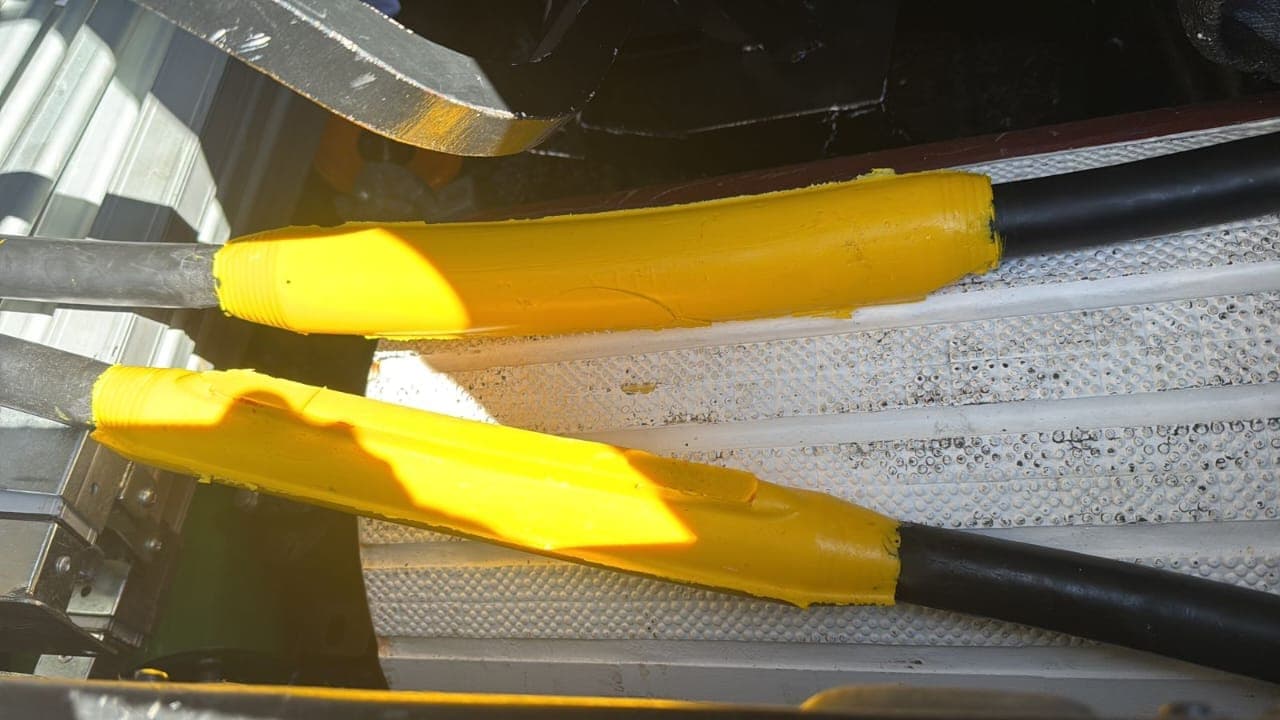

Two Flexable Resin cable joints moulded over repaired mining trailing cable, cast in the yellow resin

The resin

Product data

  • Two-part polyurethane resin, supplied in a sealed foil pack
  • Begins to cure about 10 minutes after pouring at ±20 °C
  • Mould can be removed after 30–45 minutes at ±20 °C
  • Cured hardness 65–70 Shore A
  • Available in green, yellow and red
  • Shelf life 12 months unopened; store 15–25 °C, out of direct sunlight

Product data per the product description.

Moulds & consumables

Selecting the mould

  • Mould size 1: conductor 1.5–4.0 mm²; cable outside diameter 6–15 mm
  • Mould size 2: conductor 4–16 mm² up to four-core; cable outside diameter 15–23 mm
  • Mould size 3: conductor 16 mm²; cable outside diameter 38–45 mm
  • Mould size 4: conductor 25–35 mm²; cable outside diameter 42–50 mm
  • Larger mould / resin-pack combinations selected by cable outside diameter and resin volume
  • PVC FR tape, release agent, bonding agent and application consumables

Mould ranges are the current working reference — confirmed against the current data sheet for the exact cable and joint.

Documentation

Test report and data

Voltage ratingDocumentation available on requestJoint procedureDocumentation available on requestCable range on TDSDocumentation available on request

A voltage rating is not published — a MASC report, once complete, is a flammability test, not an electrical rating. The current technical and safety data sheets and the joint procedure are available on request.

MASC flammability test reportConfirmation pending
Product / model
Flexable Cable Joint — two-part polyurethane resin
Certificate / report no.
On request
Issue / revision
On request
Scope
Kia-Kaha Mining is commissioning its own MASC flammability test to SANS 1520-1 (2022) Ed 2.1 for the Flexable Resin Cable Joint. Certificate details will be published once testing is complete.
Document available on request — state your required standard at enquiry stage.

Buyer questions

Common questions

By the cable type, number of cores and conductor size, and by the cable outside diameter measured accurately. The moulds cover conductor ranges from 1.5 mm² up to 25–35 mm² and cable outside diameters from about 6 mm to 50 mm; larger combinations are selected by outside diameter and resin volume. Confirm the mould against the current data sheet with your enquiry.

Testing

Flammability test footage

Footage from a flammability test on a Flexable Resin Cable Joint sample. Kia-Kaha Mining is commissioning its own MASC flammability test to SANS 1520-1 for this product; certificate details will be published once testing is complete. This is demonstration footage, not a voltage rating.

Flammability test footage — Flexable Resin Cable Joint sample.

On site

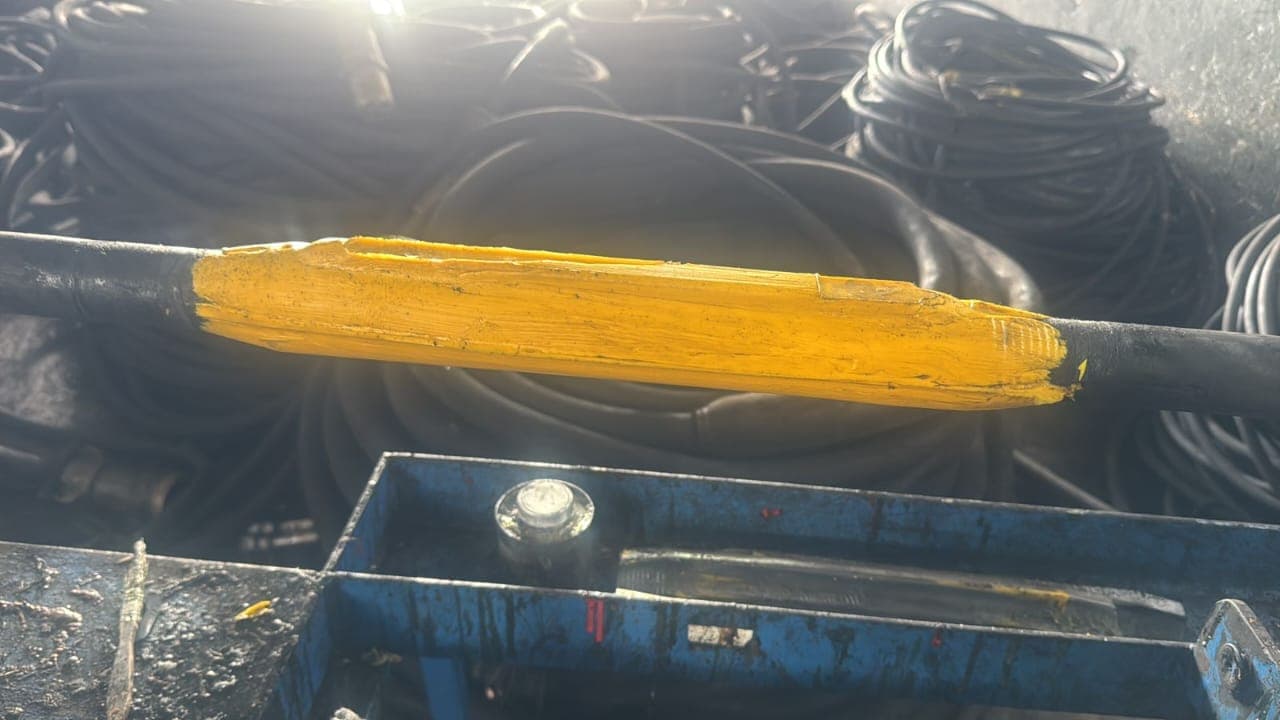

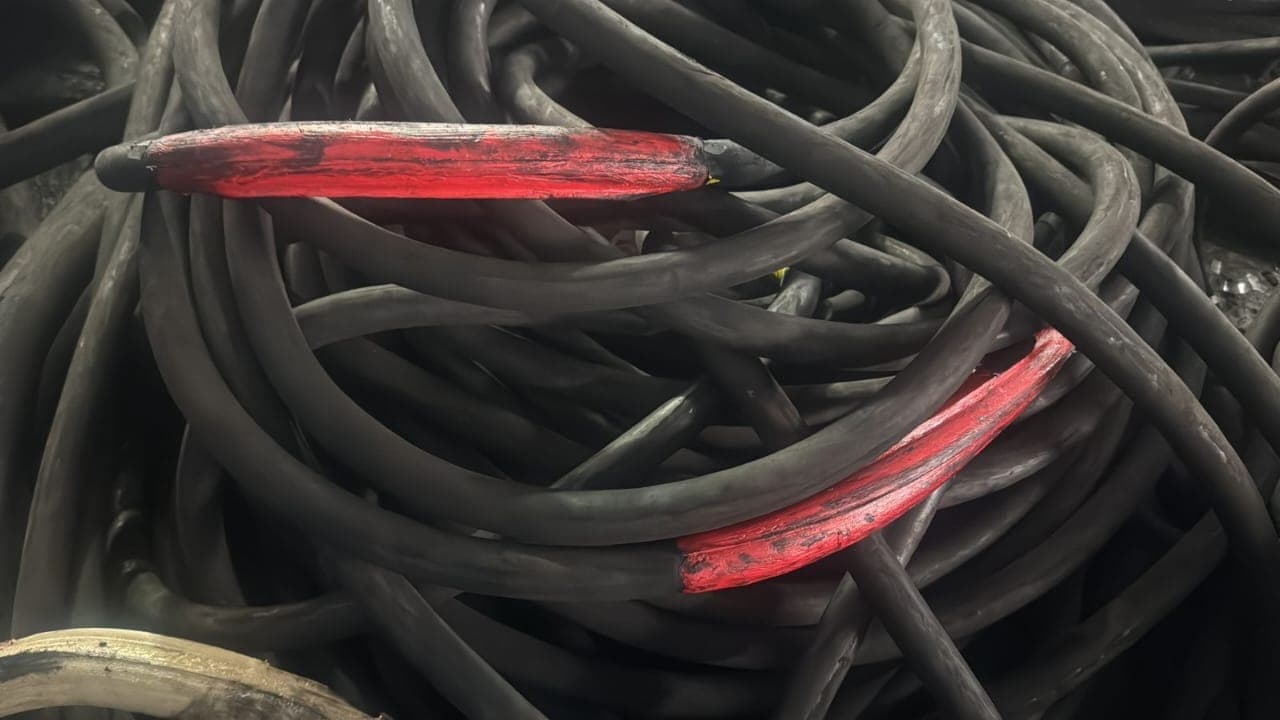

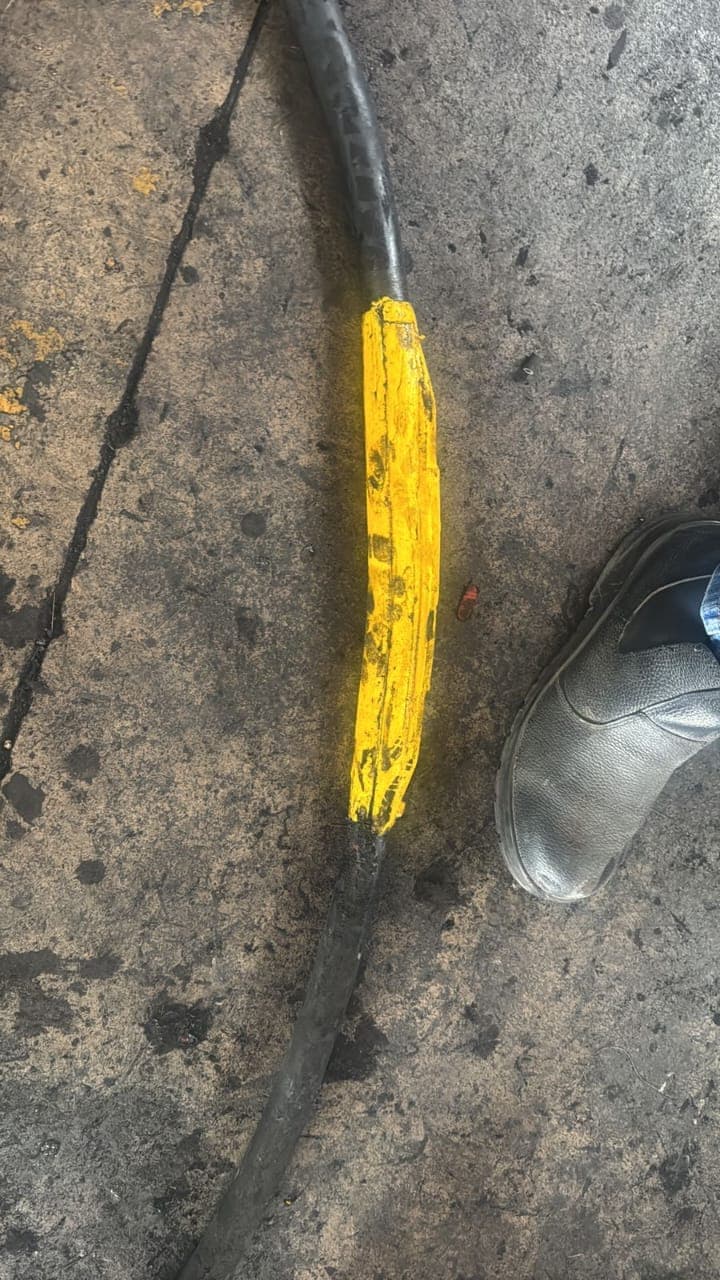

Flexable cable joints in the field

Request a quote

Send cable size, joint type and application

Measure the cable outside diameter accurately and tell us the cores, conductor size, voltage and joint configuration.
